Best-fit applications
Where this tag usually fits
- Vehicle access and gate workflows
- Parking, lot, and yard identification
- Equipment and fleet record association
- Fixed-reader vehicle checkpoints
Vehicle RFID tag sourcing

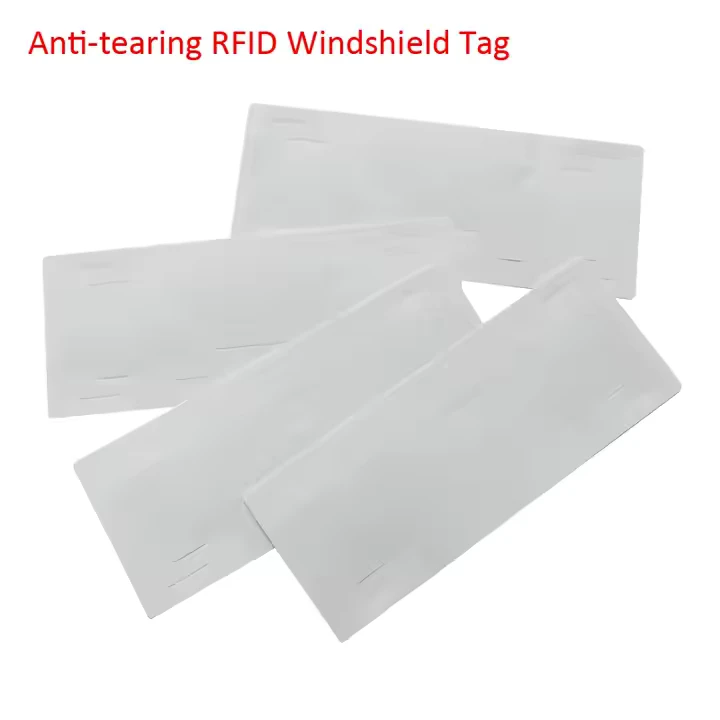

Passive UHF RFID Windshield Tags
Passive UHF RFID windshield-tag options for vehicle identification at gates, lots, parking areas, and controlled read points.
Availability: sourced to project requirements.Contact Rocket RFID for current tag options, samples, pricing, lead time, and application testing.
Tag sourcing fit
What this tag type is designed for
Windshield tags in this category are intended for passive UHF vehicle identification where a fixed reader or handheld reader needs to associate a vehicle with a software record.
Vehicle RFID projects should account for windshield materials, mounting position, antenna placement, lane geometry, tag encoding, and the business rule triggered by the read.
Representative tag data
Representative tag specifications
These specifications describe representative tag options for this application category. Available models and specifications can change by supplier. Rocket RFID confirms the final tag and specifications before quoting or deployment.
| Representative format | Vehicle ISO18000-6C long-range passive UHF RFID windshield tag |
|---|---|
| Frequency | 860-960 MHz global UHF band |
| Protocol | EPC Class 1 Gen 2 / ISO 18000-6C |
| Chip options | Alien H3 or Alien H4 selectable |
| Antenna | Alien 9654 or custom design |
| Read range | Up to 15 m depending on reader and environment |
| Label size options | 100 x 40 mm, 110 x 40 mm, 110 x 45 mm; custom sizes available |
| Material | PET or paper surface with adhesive backing; waterproof |
| Printing | Full-color printing on adhesive side with logo or barcode options |
| Lifecycle | 10+ years data retention with at least 100,000 programming cycles |
Actual read range depends on reader, antenna, lane geometry, windshield material, mounting position, tag orientation, RF power, and environment.
RF and mounting
Material, mounting, and read-point considerations
Use this tag type when a vehicle should be identified at a controlled read point without requiring a visible barcode scan.
Review before rollout
- Windshield coatings and vehicle glass composition can affect read performance.
- Gate systems need antenna placement, lane control, vehicle spacing, and event logic designed together.
- Tag encoding should associate the vehicle with the correct record, permit, asset ID, or customer workflow.
Testing guidance
Important limitations
- Do not assume toll-road, DMV, or regulatory compatibility without project-specific review.
- Access-control compatibility depends on the reader, controller, credential model, and system integration.
- Read testing should include representative vehicles and installation positions.
Related RFID guidance
Connect the tag to the right RFID workflow
A sourcing page can narrow tag selection, but the final choice should be validated with the reader, antenna, software record, asset material, environment, and operating process.
RFID tag selection
Get Tag Options & Pricing
Share what is being tagged, the material or surface, operating environment, temperature or chemical exposure, mounting constraints, desired read point or range, and approximate quantity so Rocket RFID can recommend current tag options.
